Hastelloy C276 Flanges
ASTM B564 Hastelloy Blind Flanges, Hastelloy DIN 2.4819 Slip on Flanges, Alloy C276 SWRF Flanges Suppliers in India.
UNS N10276 Orifice Flanges, JIS NW 0276 Weld Neck Flanges Exporter, Hastelloy C276 RTJ Flanges Manufacturers.
AB Steel manufactures and exports Hastelloy C276 flanges from Mumbai, supplying stockists and project buyers across India, the Middle East, and Southeast Asia.
Hastelloy C276 flanges are forged nickel-molybdenum-chromium alloy fittings, built around a chemistry that resists pitting, crevice attack, and stress corrosion cracking in both oxidizing and reducing media, providing resistance across a broad range of oxidizing and reducing environments. That range is the main benefit. C276 can be machined to the required flange dimensions and surface finish, although its work-hardening tendency requires appropriate tooling and machining parameters. These flanges go into flue gas desulfurization units and chemical process lines, where conventional stainless steels may not provide sufficient resistance to the process environment. C276 holds up there. UNS N10276 flanges nerally does not require post-weld heat treatment solely to restore corrosion resistance in the same way some precipitation-hardening alloys do; however, applicable fabrication codes and project specifications should determine the required heat treatment. For buyers sourcing across the widerHigh Nickel Alloy Flanges range, C276 is at the corrosion-resistant end, alongside grades likeHastelloy C22 Flanges for applications with mixed acid exposure.
Hastelloy C276 pipe flanges are produced as forged rings, so grain flow follows the flange contourrather than getting cut across it. That matters at the bore and bolt holes, the two areas most exposed to pressure cycling. Standard construction sizes range from ½ inch through 36 inches, and the material carries NACE/ISO 15156 compliance depending on material condition, hardness, environmental conditions, and applicable requirements, not simply the alloy name.

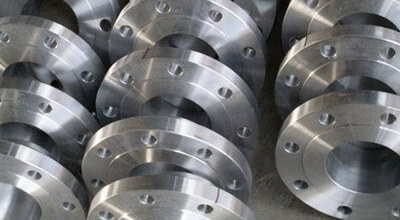

Hastelloy C276 Blind Flanges

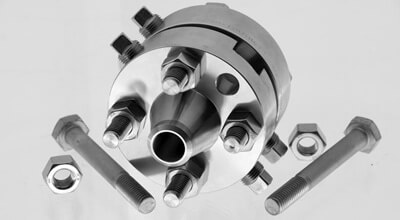

Hastelloy C276 Orifice Flangess

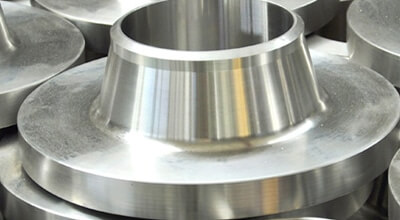

Hastelloy C276 Weld Neck Flanges
Alloy C276 Flangesis a formed corrosion-resistant product. These WNR 2.4819 Flanges repels the creation of grain boundary triggers that would worsen corrosion resistance.These are accessible to our valuable customers in different range of diameters, wall thicknesses and sizes at quite affordable rates.
ANSI B16.5 Hastelloy C276 Flanges Specification
Dimensions : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Standards : ASTM, ASME Flanges, ANSI Flanges, DIN Flanges, EN Flanges, BS Flanges etc.
Specifications : ASTM B564 / ASME SB 564
Size : 1 / 2” to 36″
Class : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Grade : Hastelloy C276– UNS No. N10276
Our Hastelloy C276 Flanges conforms to NACE MR0175/ISO 15156
ASTM B564 Hastelloy C276 Flanges Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | GOST | AFNOR | JIS | OR | EN |
| Hastelloy C276 | 2.4819 | N10276 | ХН65МВУ | - | NW 0276 | ЭП760 | NiMo16Cr15W |
Hastelloy C276 Flanges Chemical Composition
| Grade | Ni | Mo | Cr | Fe | W | Co | Mn | C | v | P | S | Si |
| Hastelloy C276 | Bal | 15 – 17 | 14.5 – 16.5 | 4 – 7 | 3 – 4.5 | 2.5 max | 1.0 max | 0.01 max | 0.35 max | 0.04 max | 0.03 max | 0.08 max |
Hastelloy C276 Pipe Flanges Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.89 g/cm33 | 1370 °C (2500 °F) | Psi – 1,15,000 , MPa – 790 | Psi – 52,000 , MPa – 355 | 40% |
Types Of Available Products AISI, ASTM, DIN, JIS, GB, EN Hastelloy C276 Flanges
- Hastelloy Alloy C276 Flanges
- C276 Hastelloy Blind Flanges
- ASTM B564 Hastelloy C276 Slip On Flanges
- Hastelloy UNS N10276 Pipe Flanges
- ASTM B564 Hastelloy C276 BLRF Flanges
- Hastelloy C276 Weld Neck Flanges
- ASME SB564 Hastelloy C276 RTJ Flanges
- Hastelloy C276 Threaded Flanges
- JIS NW 0276 Hastelloy SWRF Flanges
- Hastelloy C276 Socket Weld Flanges
- C276 Hastelloy Orifice Flanges
- ASTM B564 Hastelloy C276 DIN Flanges
- ASTM/ASME Alloy C276 Forged Flanges
- C276 Hastelloy Ring Type Joint Flanges
- Hastelloy Alloy C276 Reducing Flanges
- ASTM B564 Hastelloy C276 Lap Joint Flanges
- Hastelloy WERKSTOFF NR. 2.4819 Long Weld Neck Flanges
- Hastelloy C276 Alloy Screwed Flanges
- ASTM B564 Hastelloy C276 SORF Flanges
- Hastelloy C276 Plate Flanges
- C276 Hastelloy Alloy WNRF Flanges
- B564 Hastelloy C276 Spectacle Blind Flanges
- ASME SB564 Hastelloy C276 Flanges
- AISI Hastelloy C276 ASTM B564 Flanges
- ASTM B564 Hastelloy C276 Loose Flanges
- Hastelloy C276 JIS Standard Flanges
Our Global network
Gurgaon, Ulsan, Karachi, Ankara, Al Jubail, Melbourne, Ranchi, Riyadh, Chiyoda, Kolkata, Algiers, Jamshedpur, Hanoi, Aberdeen, Perth, Doha, Noida, Mexico City, Kanpur, Lagos, Houston, Nashik, Thane, La Victoria, Lahore, Rio de Janeiro, Brisbane, Kuala Lumpur, Faridabad, Manama, Tehran, Gimhae-si, Surat, Visakhapatnam, Busan, Granada, Hong Kong, Vung Tau, Mumbai, Moscow, Howrah, Courbevoie, Istanbul, Jeddah, Santiago, Jaipur, Milan, Toronto, Muscat, Coimbatore, Sydney, Singapore, Indore, Geoje-si, Al Khobar, Rajkot, Port-of-Spain, Seoul, Los Angeles, London, Thiruvananthapuram, Dubai, Ludhiana, Pimpri-Chinchwad, Colombo, Chandigarh, Kuwait City, Ahvaz, Bengaluru, Hyderabad, Bogota, Baroda, Ernakulam, Ahmedabad, New York, Dallas, Abu Dhabi, Petaling Jaya, Madrid, Dammam, Navi Mumbai, Vadodara, Montreal, Haryana, Pune, Bhopal, Atyrau, New Delhi, Ho Chi Minh City, Nagpur, Bangkok, Secunderabad, Caracas, Chennai, Jakarta, Sharjah, Calgary, Cairo, Edmonton
Singapore, Bolivia, Argentina, Turkey, Bulgaria, Chile, Angola, Egypt, Peru, United States, Puerto Rico, Estonia, Zimbabwe, Algeria, Philippines, Iraq, China, Thailand, United Arab Emirates, Portugal, Namibia, Macau, Belarus, New Zealand, Ireland, Croatia, United Kingdom, Denmark, Bhutan, Serbia, Hungary, Germany, Kuwait, Italy, Austria, Afghanistan, Greece, Sweden, Romania, Vietnam, Canada, Morocco, Sri Lanka, Mexico, Brazil, Finland, Israel, Ghana, Kazakhstan, Trinidad & Tobago,Tunisia, Libya, Russia, Lithuania, Hong Kong, Azerbaijan, France, Yemen, Costa Rica, Mongolia, Bahrain, Jordan, Czech Republic, Spain, Nepal, Japan, Kenya, Gabon, Bangladesh, Nigeria, Slovakia, Ukraine, Lebanon, Malaysia, Australia, Belgium, Tibet, Chile, South Africa, Netherlands, Poland, Nigeria, Venezuela, Pakistan, Indonesia, India, Norway, Iran, Qatar, Taiwan, Saudi Arabia, Oman, Ecuador, Switzerland, Gambia, South Korea, Colombia
FAQs
Hastelloy C276 flanges are used in flue gas desulfurization systems, wet chlorine lines, sulfuric and hydrochloric acid piping, and other chemical process circuits where pitting and stress corrosion cracking rule out standard stainless steel. Pharmaceutical and pollution control plants specify them for similar reasons.
ASTM B564 is a specification for wrought nickel alloy forgings, including flanges and other forged components. Chemistry and mechanical testing requirements differ from those of a carbon or stainless steel flange made to A105 or A182. C276 flanges also carry molybdenum and tungsten content that standard grades don't, which is what gives the corrosion resistance.
The key advantage is resistance to pitting, crevice attack, and stress corrosion cracking in oxidizing and reducing environments alike, a rare combination for one alloy. They also generally skip post-weld heat treatment, which is not the case with several other high-nickel grades.
The types of Hastelloy C276 pipe flanges produced include weld neck, slip-on, blind, socket weld, threaded, lap joint, orifice, RTJ, and spectacle blind. Reducing and long weld neck configurations are available on request against the drawing.
Sizes run from ½ inch up to 36 inches. Pressure classes cover 150 through 2500 in ANSI ratings, plus PN6 to PN64 for buyers working to European standards.
